Non-woven disposable medical sheet folding machine

Full Automatic Medical Bed Sheet Folding Machine

Video link:

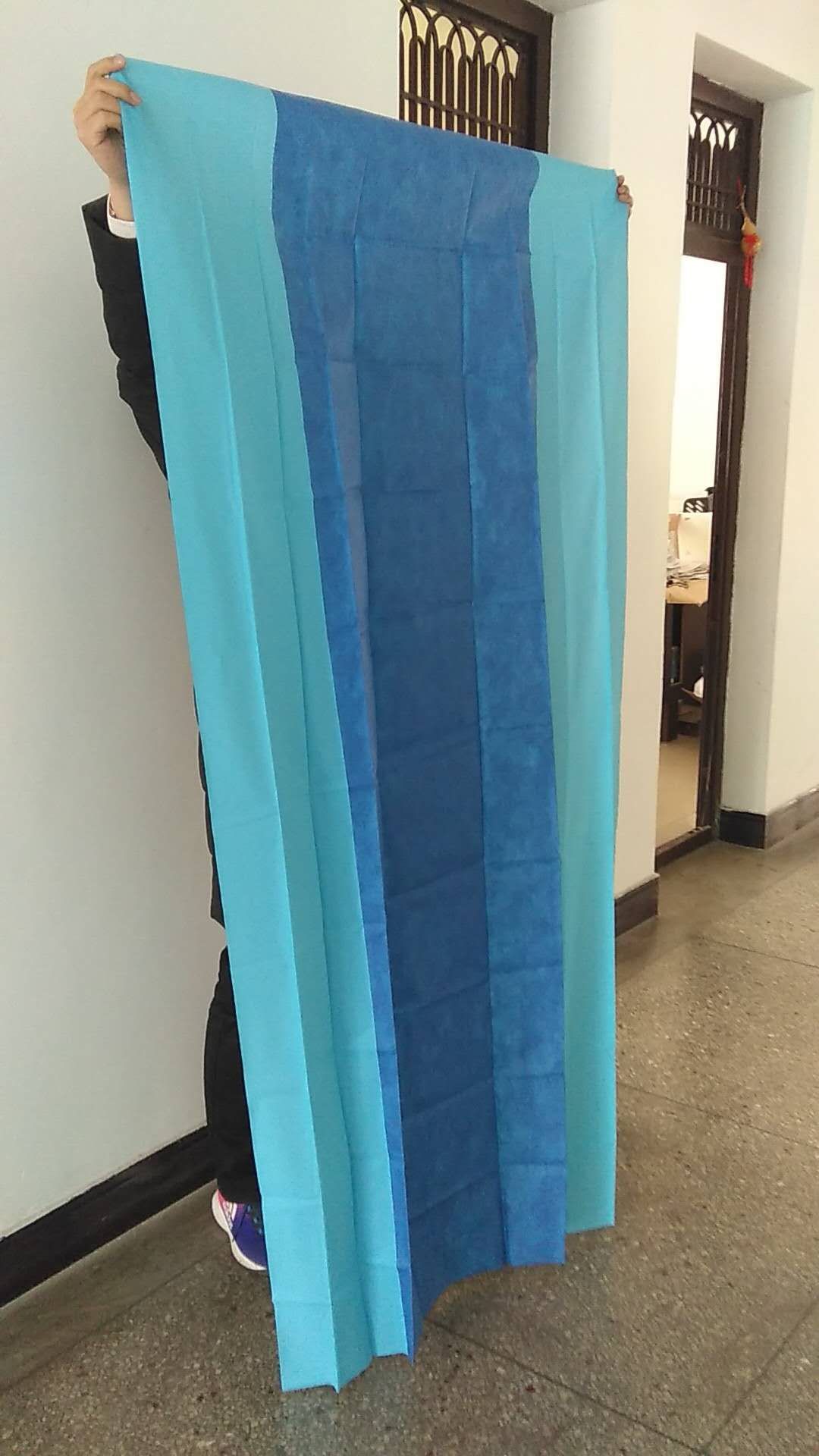

This machine folds the raw material vertically several times,cuts and folds it by half three times transversely. Adopting full servo follow-up of fixed cutting and servo-controlled folding,the machine enables the adjustable size of products, pneumatic folding,automatic counting and automatic feeding.

[Working flow]

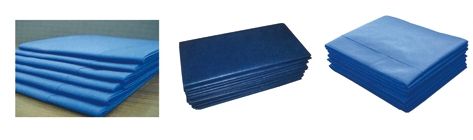

Raw material feeding-vertical folding-cutting(1500-2500 mm adjustable)-transverse folding 1-transverse folding 2-transverse folding 3-products


Machine name

Full automatic medical sheet folding machine

Raw material

SMS non-woven 18--25 g/m^2

Raw material specification

800-1200*1000 mm

Raw material core diameter

76.2 mm

Unfolded size

1500-2500*800*1200 mm

Folding type

3 times vertical folding

4-6 times transverse folding


50-70 pcs/min


11.5 KW 380V 50Hz

Pneumatic material loading

air compressor provided by the clients

Cutting device

circular knife ( servo controlled sizes)


Flat belt synchronous feeding

AP variable speed wheel step-less control

Each folding is conveyed by the conveyor.
