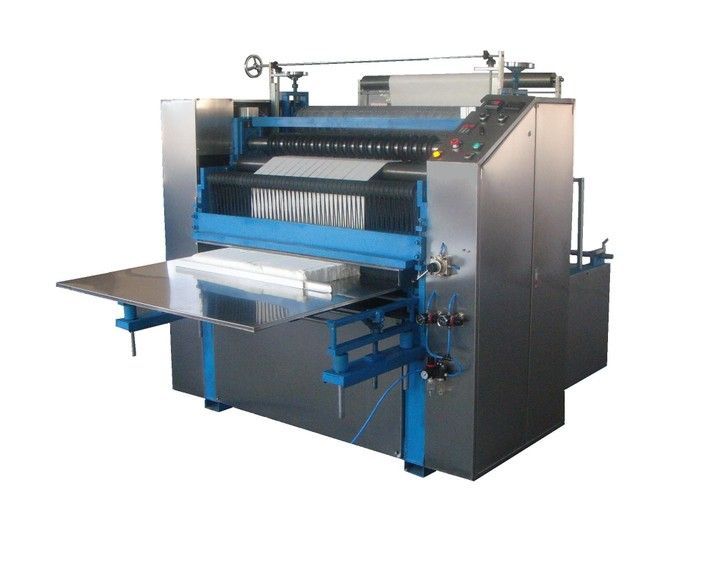

Square cotton pad folding machine
Square cotton pad folding machine
Main features:
1.Full Automatic working flow: raw material conveying- embossing-longitudinal slitting- transversive cutting- couting- stacking.
2. High quality steel as material. Embossing can be added or customized to requirement.
3. Accurate cutting without egdes.
4. Pneumatic automatic counting device.
5. The size of the final products can be adjusted freely.
6. The working table and the main parts with direct contact to the cotton pads are made of 304# stainless steel for hygiene consideration.
7. The machine is adopted with frequency convertor to control the speed with less noise in production and easy operation.
8. The machinecan produce both open edge and sealed edge products.
9. We are open to custmized product design.
Technical specification:
Name | Square cotton pad folding machine |
Design Speed | 300-2000 pcs/ min |
Working speed | 1800 pcs/min |
| Product size | W:40-100mm L:40-100mm (Width is fixed) |
Raw material diameter | 700 mm |
| Raw material width | 1000mm |
| Power | 380V 50 Hz 4.5 KW |
Dimension | L:2500mm*W:1900mm*H:1600mm |
Weight | 2500kg |
