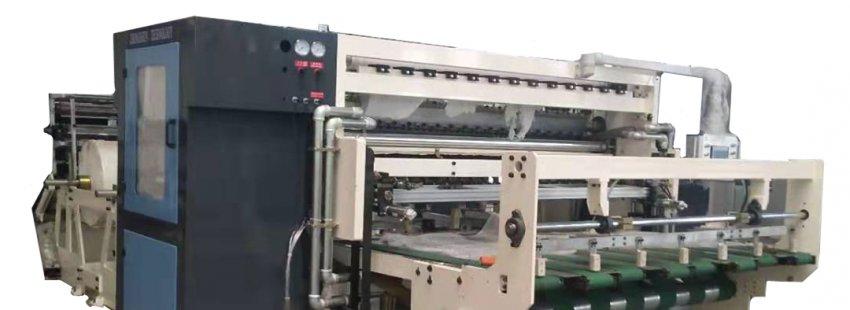

I.SAN-FT-10L V-fold Facial Tissue Folding Machine(with self-transfer)
No | Item | Specifications |
1 | Model | SAN-FT-10L |
2 | Work speed | 800-900 pieces/min/line |
3 | Jumbo roll width | ≤1300 mm |
4 | Jumbo roll max diameter | φ1300 mm |
5 | Jumbo roll inner core diameter | φ76.2 |
6 | Product open size | 200 mm (according to order） |
7 | Product folded size | 100mm (V fold) |
8 | Counting mode | PLC control |
9 | Jumbo roll loading | Pneumatic loading |
10 | Control system | PLC control |
11 | Folding type | Vacuum pump |
12 |
Driving system | Main machine: motor + V belt + timing belt Separate system: servo motor + synchronous belt Back stand: Independent motor with stepless transmission |
13 | Embossing unit | Steel to felt, Whole steel 25mm thickness(optional) |
14 | Pneumatic system | ≥6kg/cm²（provided by clients） |
15 | Total Power | 38.6KW |
16 | Power | Main motor-5.5 kw Edge embossing motor-1.5 kw*2 Separate servo motor- 4kw Hold paper servo motor-2.6 kw Back stand independent motor-0.75*2 Vacuum pump-22 kw |
17 | Folding unit panel thickness | 50mm |
18 | Back stand panel thickness | 20mm |
19 | Weight | 6550KG |
20 | Safety protection | All main drive parts are covered with protective shields |
II. SAN-HX-200 High-Speed Log Saw Cutting Machine- 2 lines model
No | Item | Specifications |
1 | Model | SAN-HX-200 |
2 | Jumbo roll width | Max. 2050mm |
3 | Log convey | adopt a servo motor system pusher log location |
4 | Speed | 150-180 cuts/min |
5 | Cutting length | 50-300 mm |
6 | Driving | Servo motor independent driving |
7 | Number of lines | 2 lines |
8 | Grinding wheel system | automatic sharpening |
9 | Circular blade diameter: | φ610mm |
10 | Cutting error tolerance: | ±2 mm |
11 | Clamp size | φ90-125mm |
12 | Control system | PLC |
13 | Power | 11 KW |
14 | Cutting length adjustment: | touching panel |
15 | Machine structure | whole wallboard |
16 | Air consumption | 0.8m^3/h |
17 | Min. Compressed air pressure | 0.6 Mpa |
18 | Paper waste | automatic dropping and conveying |
19 | Transmission part | Timing belt from USA AND bearing from Japan |
20 | Door alarm | If the door is opened while machine running, the alarm will be activated. |
