Facial tissue folding machine


Facial tissue folding machine

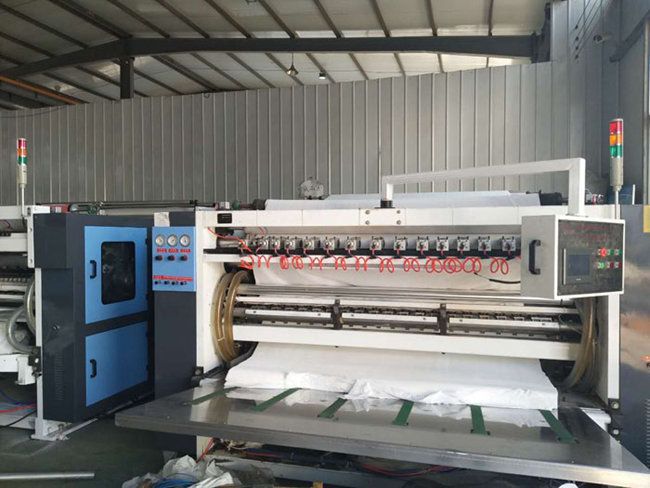

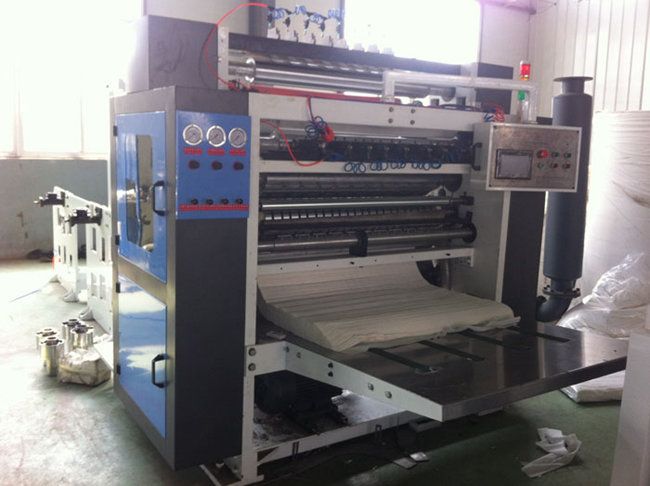

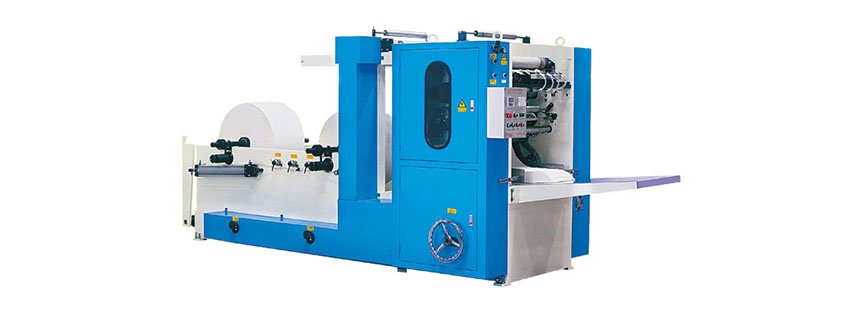

SAN-FT V Fold Facial tissue Machine adopts PLC programmable technology, frequency control and touch type multi-screen HMI. An independently developed long-distance communication service system is equipped to monitor the running of the machine. The  whole machine adopts timing belt driving and stepless speed adjustment, fitting more kinds of raw material and enhancing the quality and quantity.


Main features:

1.Pneumatic steel to steel embossing roller and pneumatic separation.

2.Pneumatic jumbo roll loading, stepless speed adjustment and tension control

3.Roots Vacuum Pump is set for larger absorption and better operation.

4.Pneumatic dot slitting and full slitting are available to make products of different width.

5.Steel to steel embossing unit to bond the paper together.

6.Optional jumbo roll guiding system.

7.The machine will stop when the paper is broken, avoiding waste caused by no paper or broken paper.

8.Frontal and back inching switch is set to drive the paper to make easier and safer operation.

9.Automatic timing lubrication on key parts.

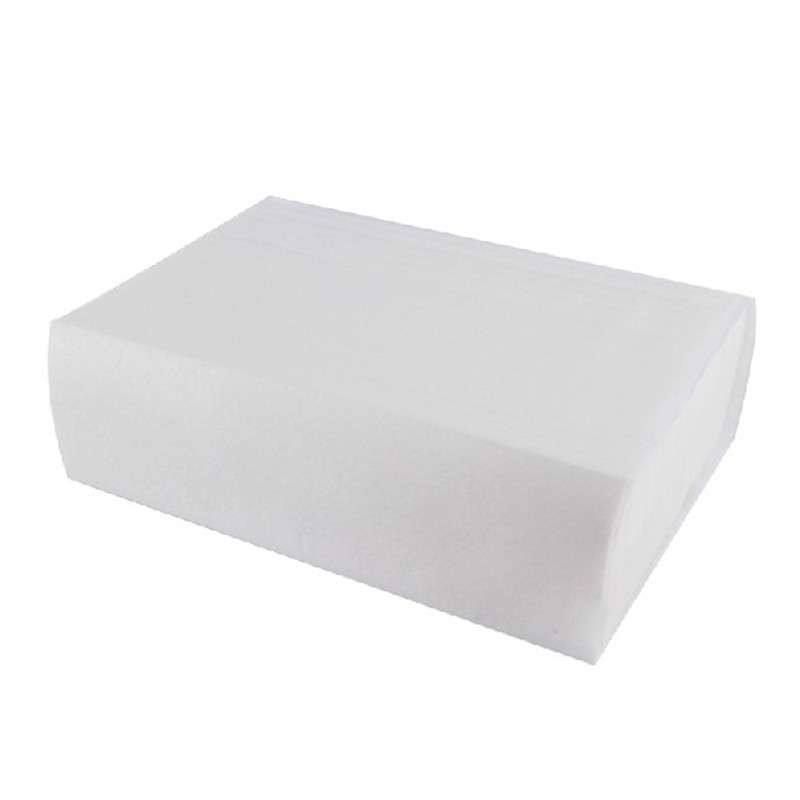

Finished Products unfolded size200*200mm (OTHER SIZE CAN BE ORDERED)
Raw material diameter1300mm (OTHER SIZE CAN BE ORDERED)
Speed0-100 m/min (800-1000 pcs/min/line)
Pneumatic System3 HP air compressor
Vacuum suction unit power11-32 KW
Calendering unitSteel to steel,steel to rubber
Vacuum suction unitRoots vacuum pump
Programmable controllerMitsubishi programmable controller, LCD screen operation panel
powerRegulator electromagnetic speed regulation motor
Driving systemTiming belt,chain
Slitting unitPneumatic dot slitting
Edge embossingSteel to steel independent adjustment
Vacuum suction unitRoots type vacuum pump
