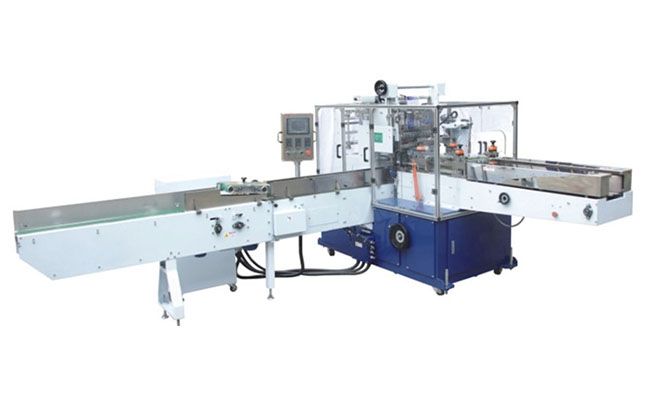

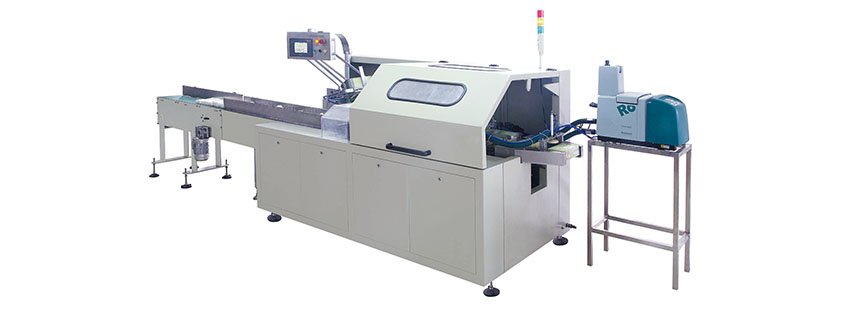

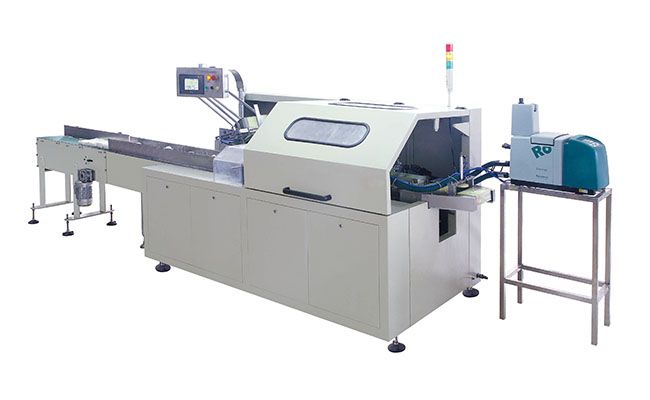

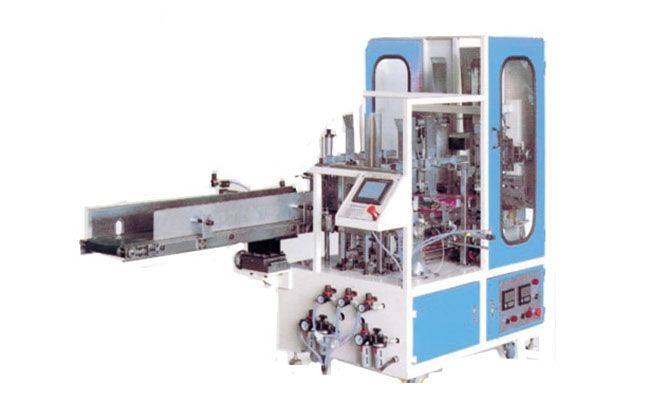

Facial Tissue packing machine


Facial Tissue packing machine

Application range

It is suitable for automatic boxing of facial tissues, napkins, square tissues, pocket tissues, sanitary towels, pads, etc.

Main performances and structure features

1 Packing forms such as automatic feeding, box opening, boxing, batch number printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.

2 Servo/step motor, touch screen, OMRON PLC controls system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.

3 The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.

4 The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.

5  With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.

6 Change to different size boxes, no need change of molds, but can be realized through adjustment.

7  Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.

8 According to customer requirements, the upturning type safety protective cover is   adopted, which is featured by simple operation and beautiful appearance.

Performance technical parameters

Maximum packing specificationL240mm×W120mm×H110mm
Packing speed30-100 boxes/minute
Hot melt machine power Concept C 5/2 (Robatech, made in Switzerland)3KW
Motor power0.75KW
Total power4.5KW
Power supply typeThree-phase four-wire 380V 60Hz
Machine noise≤80dB
Air supply0.5-0.8 Mpa (prepared by buyer)
Air consumption120-160L/min
Out dimensionsMain machine3000×1100×1650mm
Conveying mechanism2000×400×1300mm
Machine weight1200Kg
