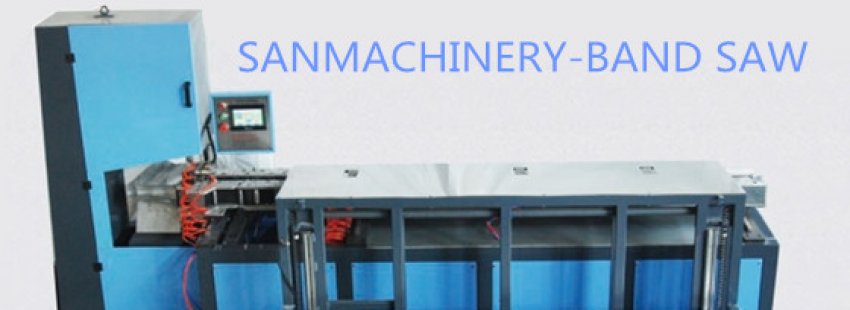

Auto Band Saw


 https://youtu.be/_sfBng2mUQU

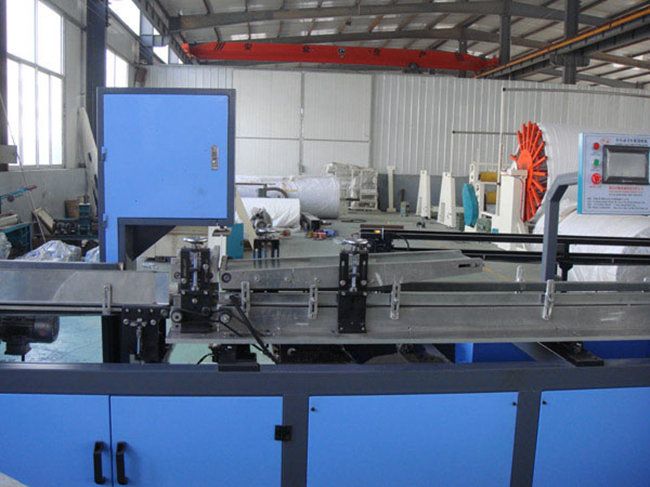

SAN-DQ-4300 Automatic Blade Saw Cutting Machine adopts PLC and frequency control to maintain a speed of 40-80 cut per minute. With photoelectric loading, embossing and counting, servo-controlled cutting, the machine can cut paper to any size with skewed and length deviation within 0.2 and 0.5mm, and a minimum cutting of 10mm. It greatly reduces labor and enhances working speed.



Technical specification

Paper length1500-2100mm
Paper outside diameter90-150mm
Speed40-80 cuts/min
Cutting length100-240mm adjustable
 Programmable controllerPLC control
Servo motor0.55 kw
Cutting motor2.2 kw
Weight1500kg
