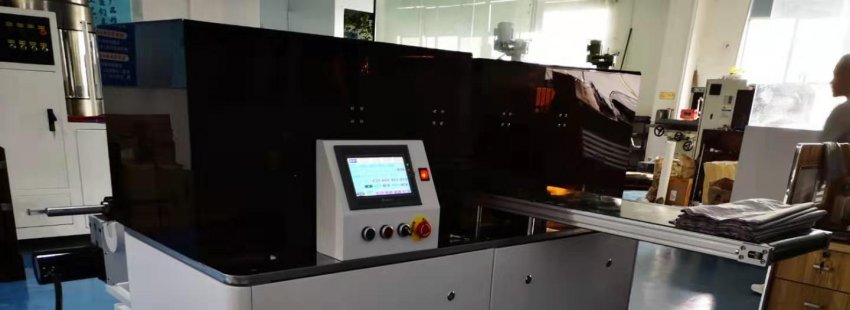

Plastic table cover folding machine

微信图片_20210220110514
INQUIRY NOW

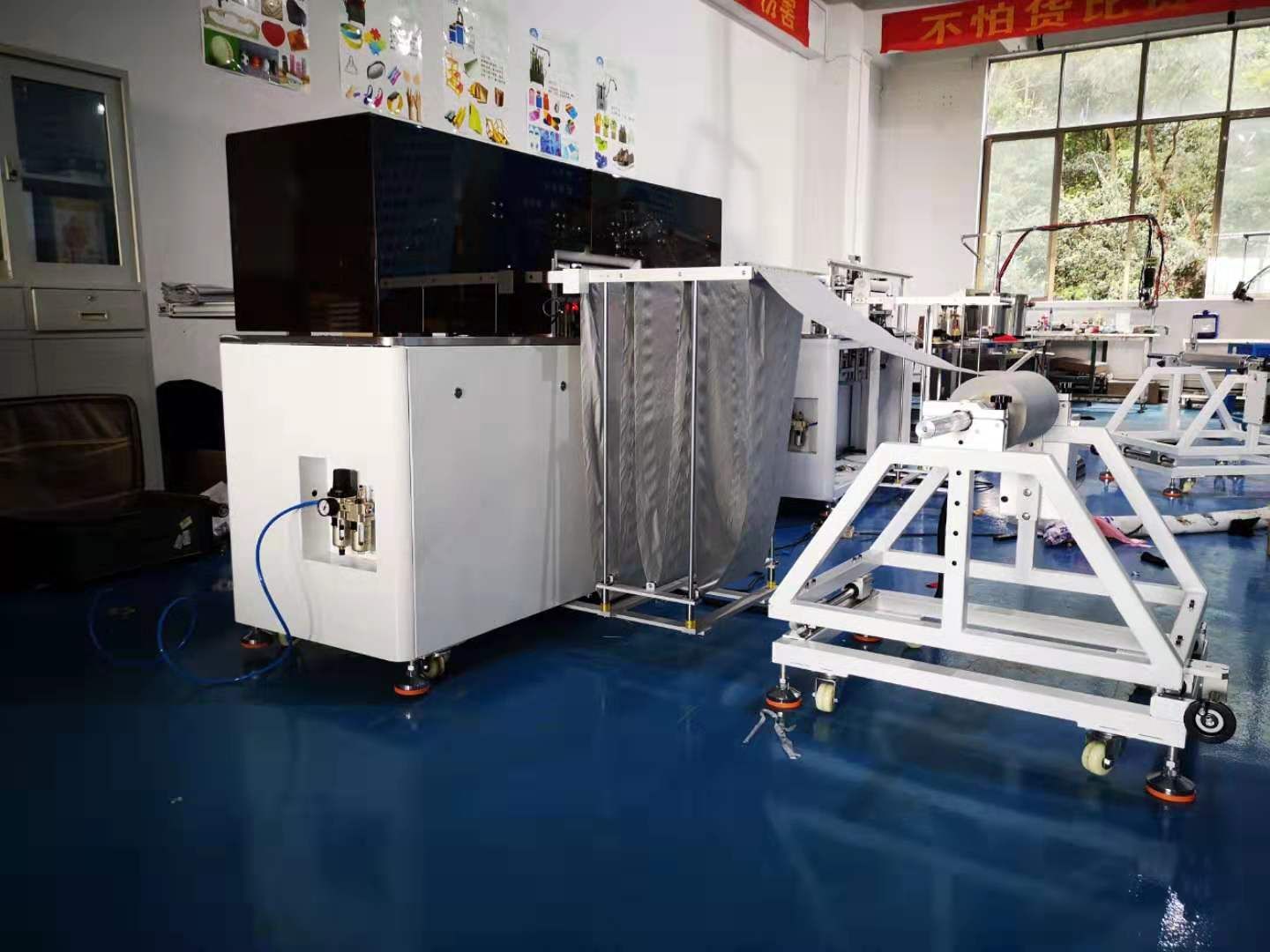

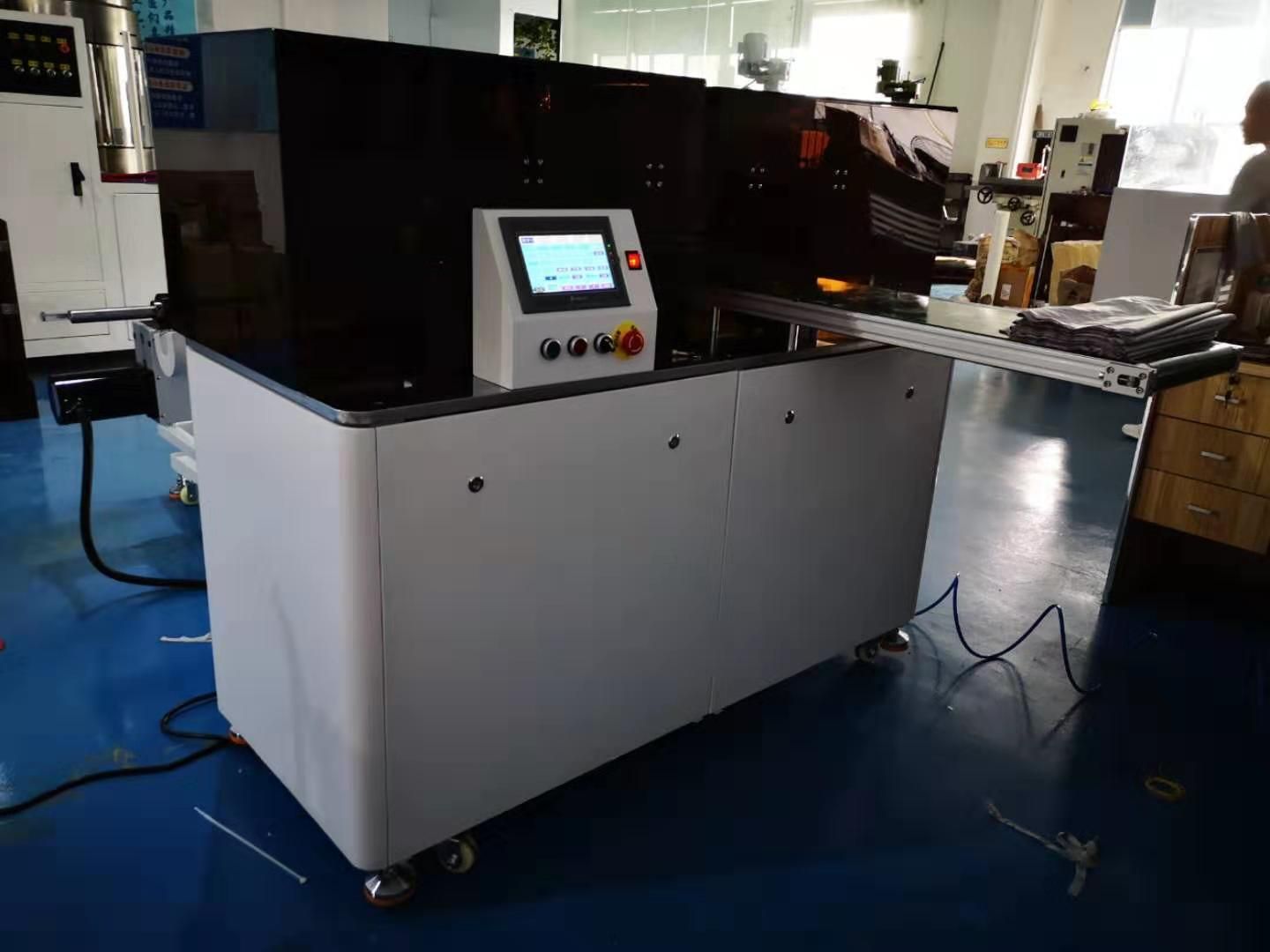

Plastic table cover folding machine



1. Description

This equipment is mainly used to produce multiple folded plastic table covers. It enjoys fast running speed and high yield.



2. Working flow:

 SAN-TCF-450  Table Cover Folding Machine

Raw material loading -plastic film driving -half folding - material rewinding- material discharging- out put

3. Equipment specifications

Model

SAN-TCF-450

Material

41 gsm blown film (PE,PEVA,EVA, etc)

Material size

45.72 cm (18 inch)*50-60 cm

Half folding unit

1 set

Rewinding roller width

180-350 mm

Parameter display

POD touching panel

Running speed

Max. 900 pcs/h

Power supply

220 V

Air source

0.5-0.6 MPa (provided by the user)

Material cutting

Electric cutter

Total power

1200 W

Dimension

1450*680*1380 mm + 1100*1000*1200 mm

Weight

350kg +85 kg

4. Major electric parts

Item

Brand

Quantity

Servo motor

Taiwan-Tode

1 PCS

Cylinder

Japan-SMC

1 PCS

Finished products collection cylinder

Japan-SMC

4 PCS

Touching panel

SA-4.3A

1 PCS

Proximity switch

Omron

8 PCS

PLC

Taiwan-Vigor

1 PCS

Step motor

Shenzhen- Yakotec

1 PCS

Switch power supply

Shenzhen-MW

1 PCS

Glide track

Taiwan-Hiwin

3 PCS

Guide track

Taiwan-Hiwin

1 PCS

Servo reducer

Taiwan-SESAME

1 PCS

Photoelectric sensor

Japan-Panasonic

1 PCS
