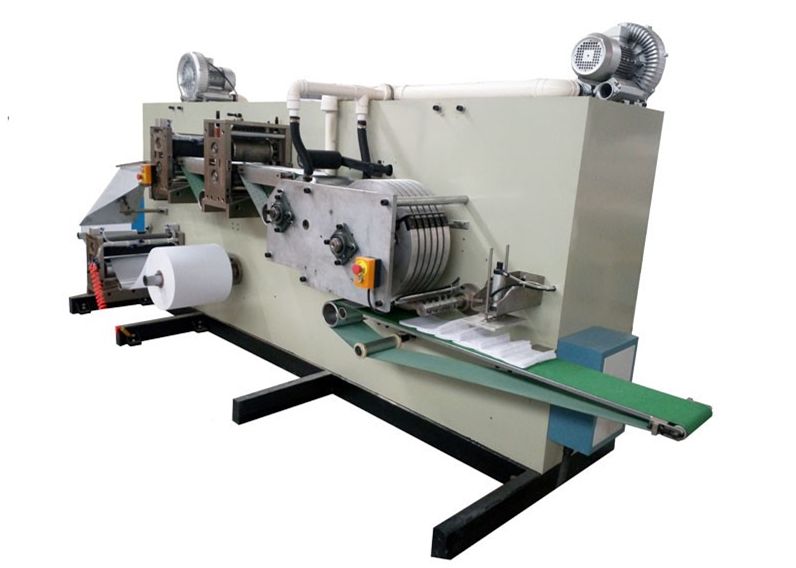

Toilet seat cover folding machine

Toilet seat cover folding machine

Video link: https://youtu.be/fVZPEAPyy5I

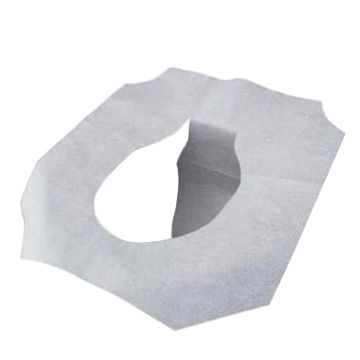

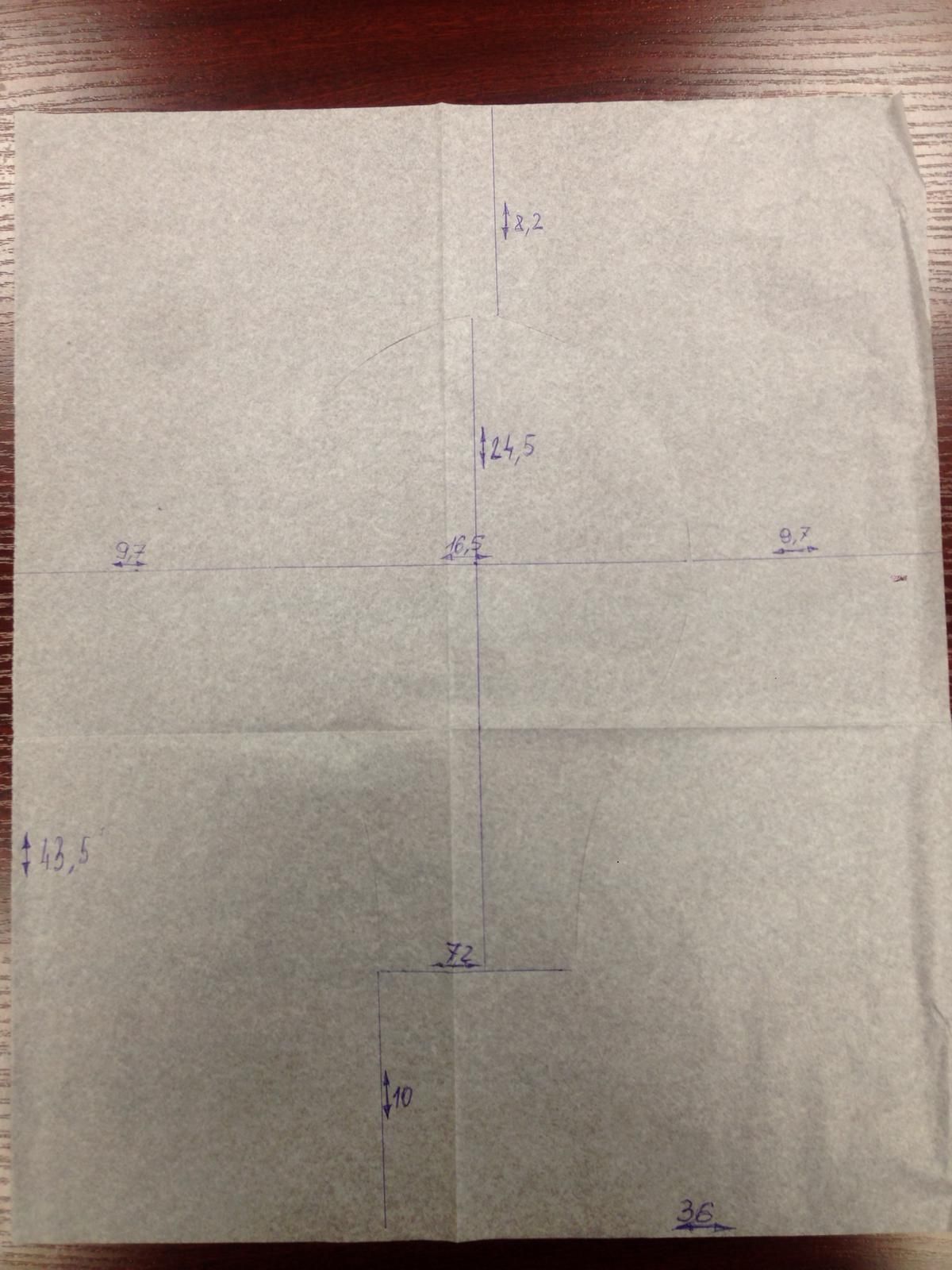

Product open size 430×370±5mm

Product folded size 215×185±5mm

Raw material: 100% virgin wood pulp 14-16 gsm 2 plies;22-25 gsm1 ply

Raw material size 370×Φ1000mm

Pneumatic paper loading  air compressor provided by the buyer

Embossing unit 1 set steel to wool or rubber rollers

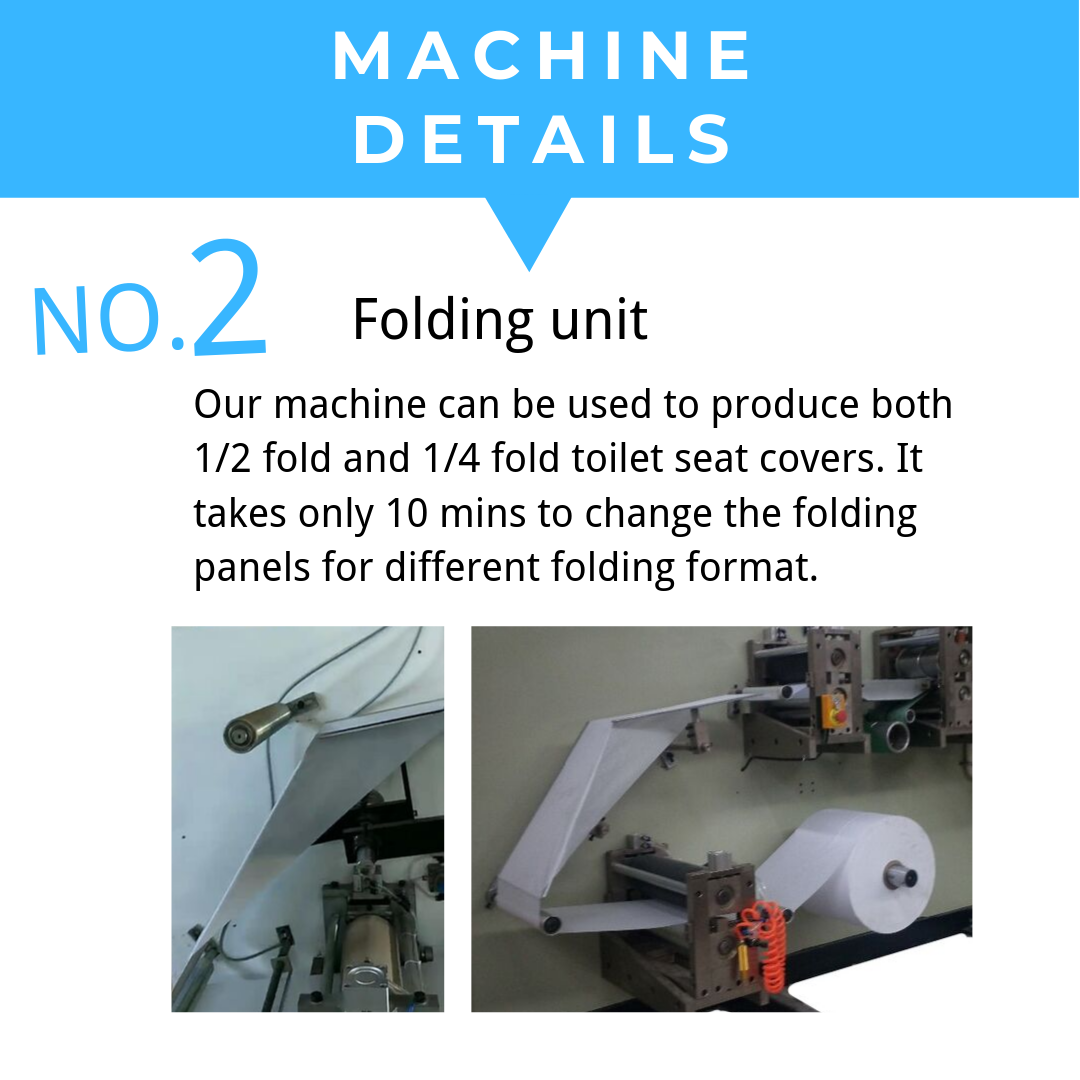

Folding type 1/2;1/4 fold' 1/16 fold

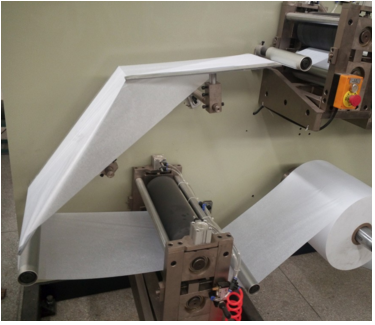

Transverse folding triangle panel

Driving device steel to a rubber roller

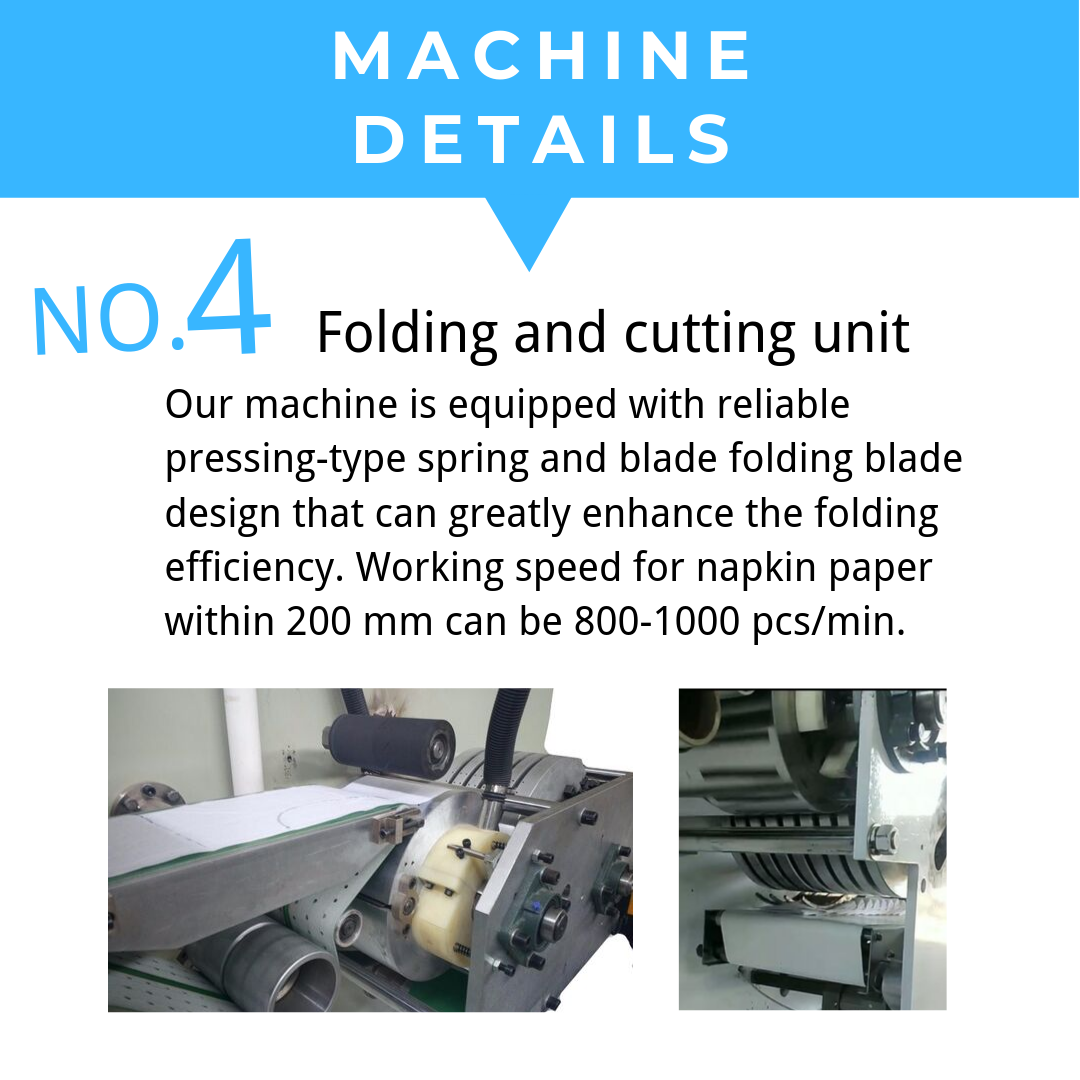

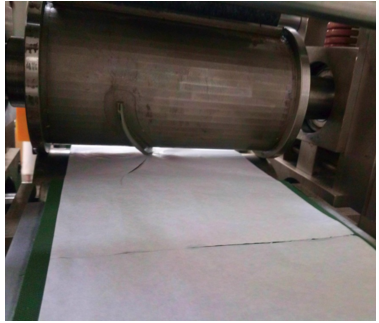

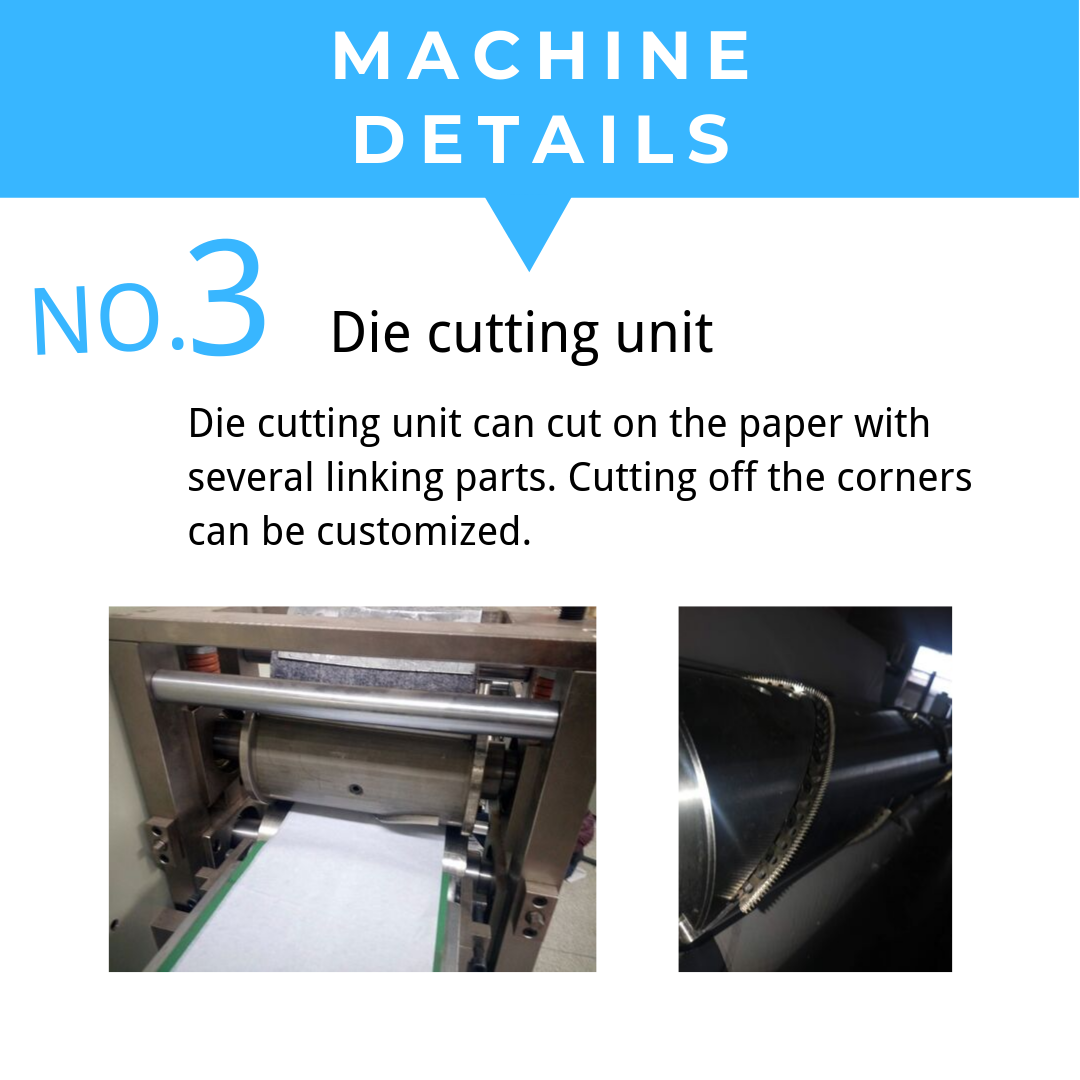

Die-cutting device customized to a given sample or size

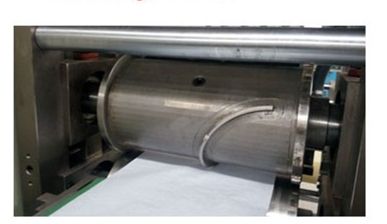

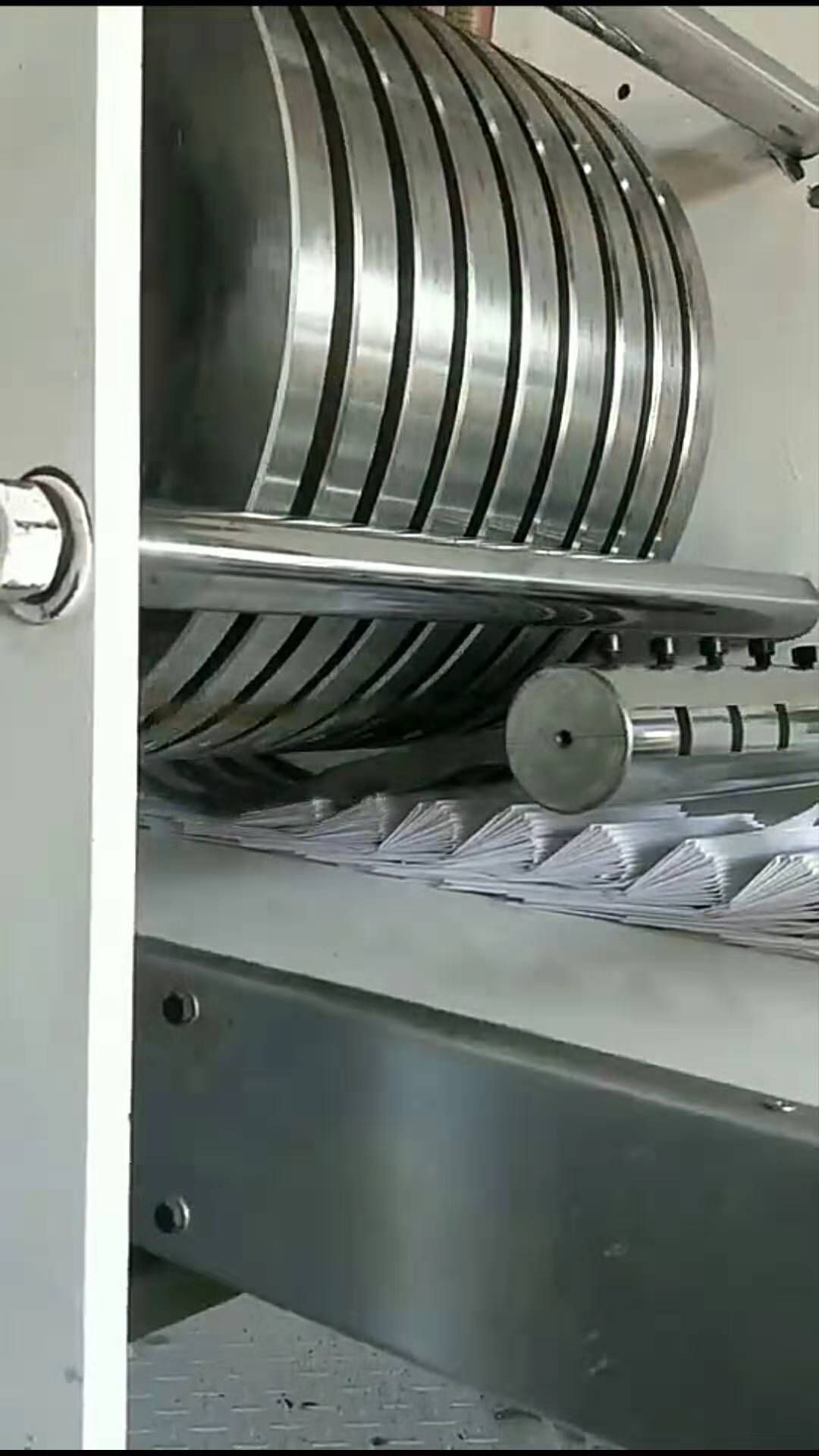

Longitude folding vacuum folding unit

Flat belt transmission

Capacity 80 pcs/min

Motor  380 V 50 Hz 5.5 kW

Frequency conversion and speed regulation

Electrostatic elimination device
