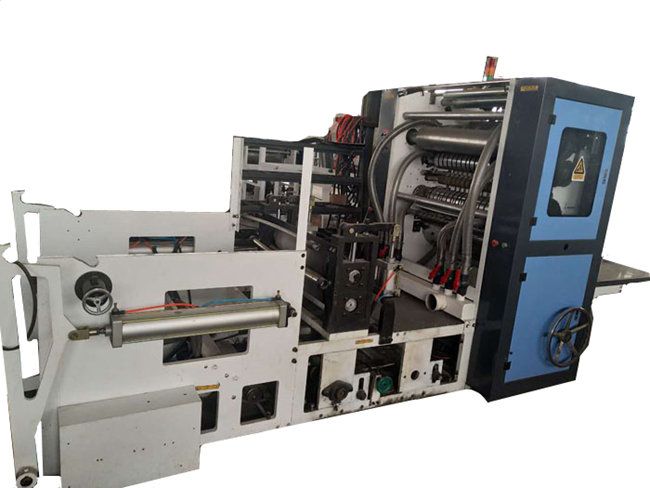

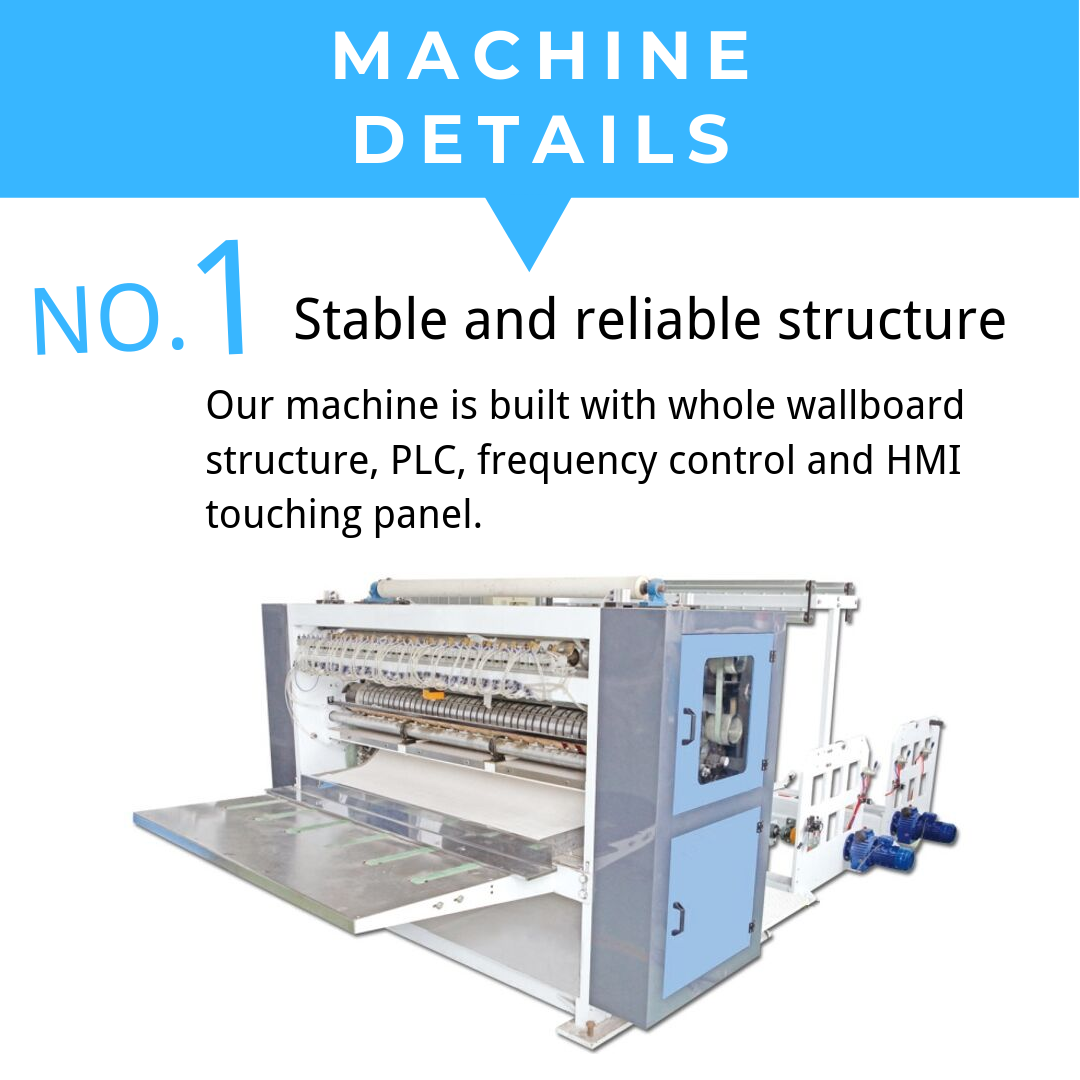

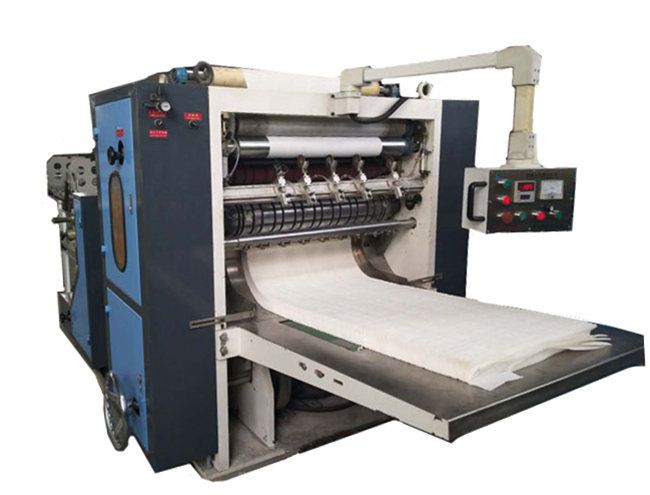

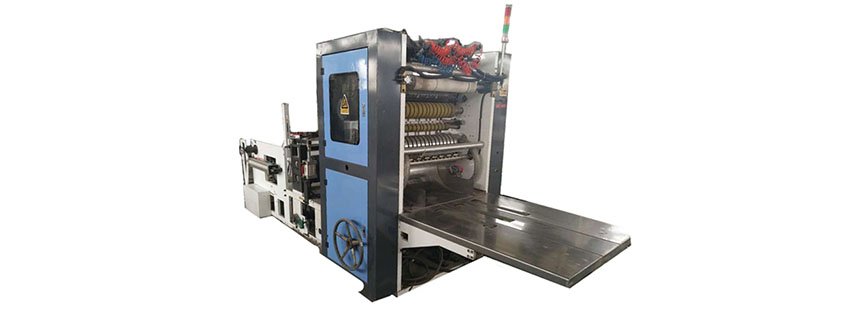

Hand towel folding machine






https://youtu.be/tvkkrifUrqc


SAN-HT Automatic N-fold Towel Folder embosses and cuts the slit towels or wet strength tissue and inter-folds them into N-shaped towels, which are widely used in hotels,offices and kitchens. The towels can be easily drawn out one after another from the dispenser, featuring for high speed and nice folding.



Main features:

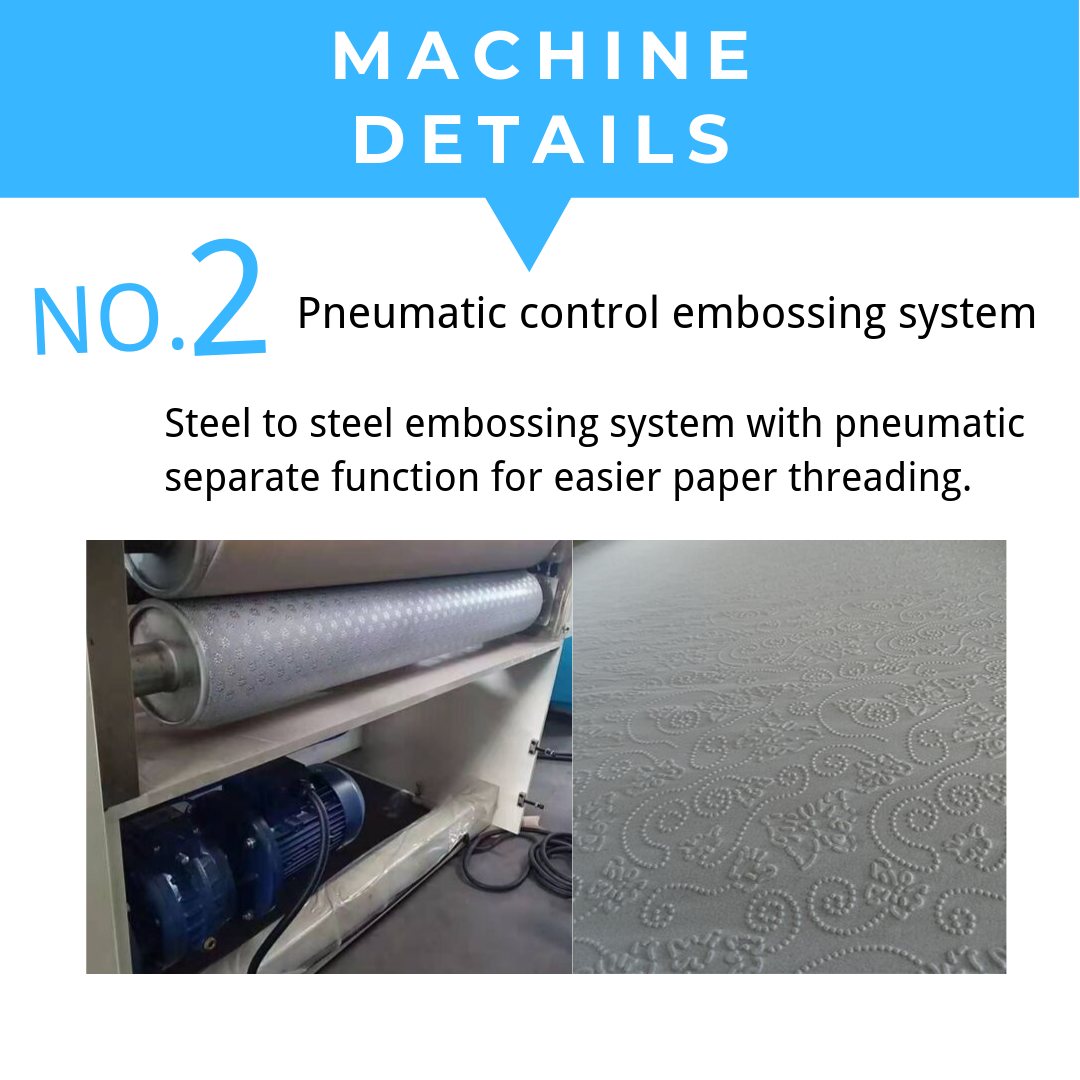

1.Steel to steel embossing and pneumatic press. The designs are available to customer’s requirement.

2.The machine adopts the China-initiative energy-saving clamp folding.

3.Timing belt transmission with accurate speed and lower noise.

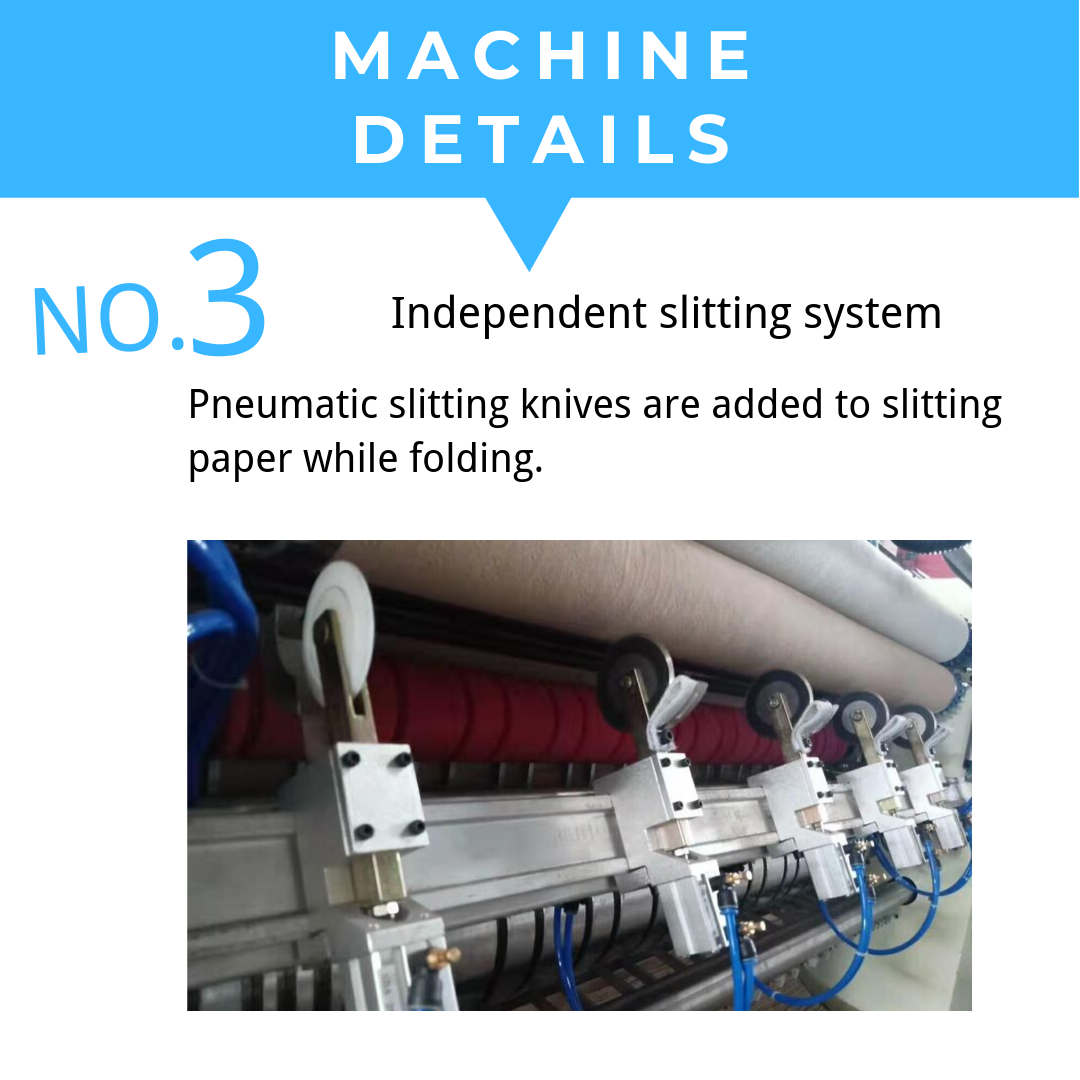

4.Pneumatic cut and separate.

5.Automatic timing lubrication on key parts. Electronic counting and inching switch.

6.Optional PLC system to the customer’s requirement.

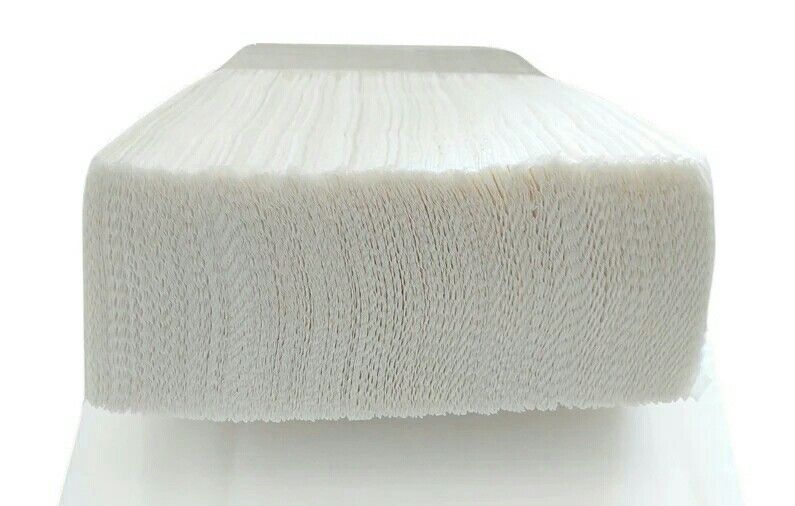

Finished Products unfolded size230*230mm
Raw material diameter1100mm
Speed750-850sheets/min

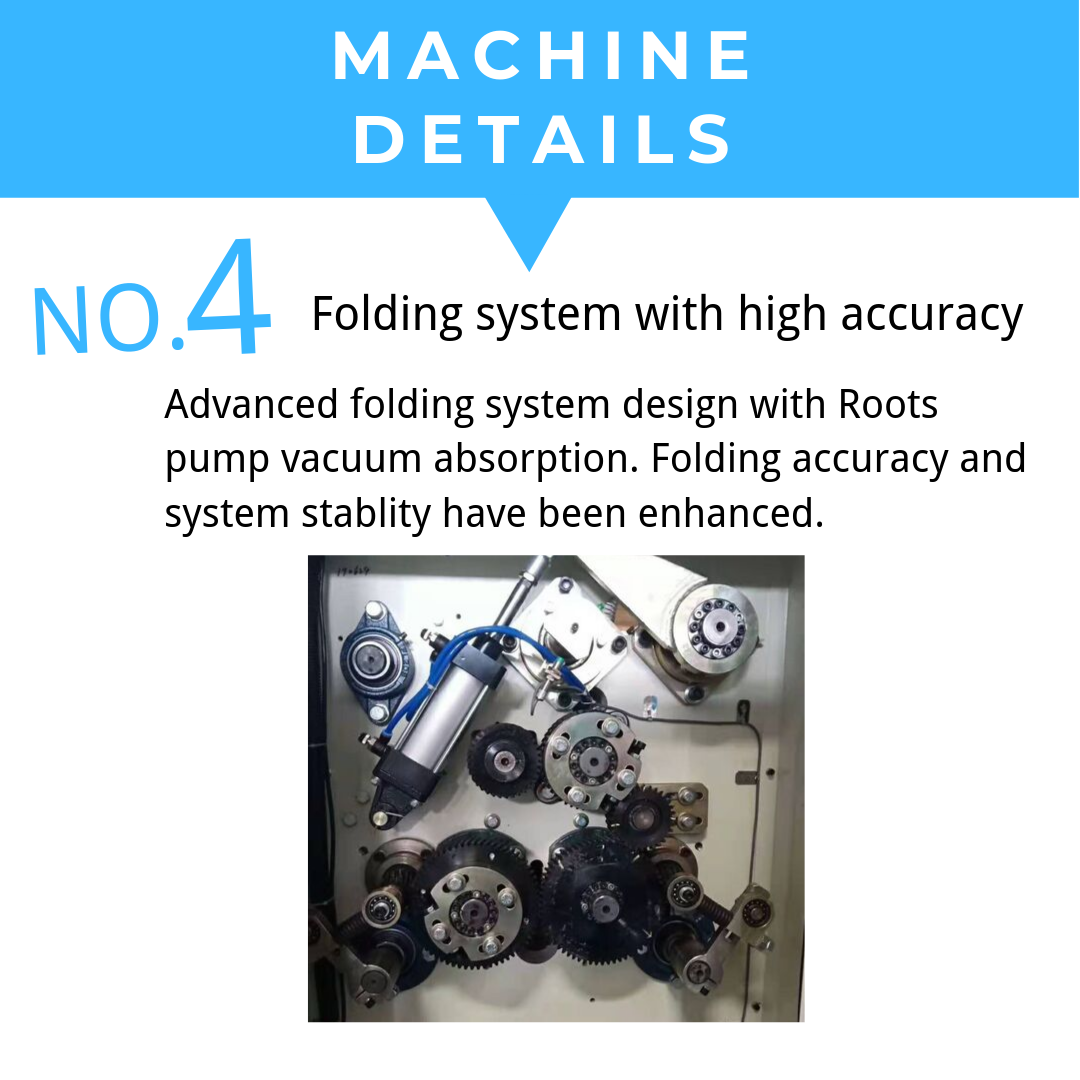

 Folding typeFolded by knife
 Embossing UnitSteel to steel
Dimension3000*1230*1900
Calendering unitSteel to steel,steel to rubber
Weight3000kg
OPTION
POWERElectromagnetic speed regulation motor
Driving unitTiming belt
Programmable controllerMitsubishi programmable controller plc
