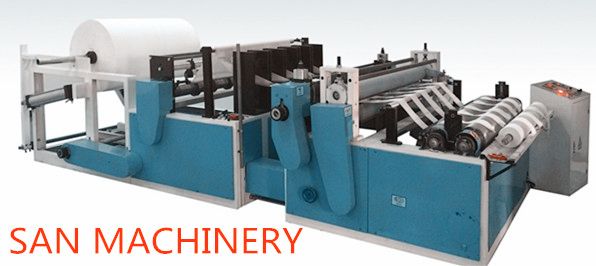

Multi-function disposable towel bed sheet wax strip roll making machine
This is a newly upgraded machine based on market trends. Our machine can produce disposable towel roll, medical bed sheet roll and wax strip roll from one machine. It could be used as: a 9 line disposable towel roll, a 2 line bed sheet machine and a 30 line wax strip roll making machine.
| Raw material | 1600-2000×Ф1000mm |
| Rewinding roller width | 2100-2200 mm |
| Material loading | pneumatic loading (air compressor provided by the user) |
| Machine speed | 0-160 m/min |
| Slitting width | Adjustable on both upper and botttom knife |
| Min. Slitting width | 70 mm |
| Max. Rewinding diameter | 300 mm |
| Rewinding method | Pneumatic pressing type |
| Power | 380V 50 Hz 3 kw |
| Automatic counting | Yes |
| Speed regulation and frequency conversion | Yes |
| Perforation |
|
| Rewinding shaft | φ25mm shaft for bed sheet roll and soft disposable towel roll φ74 mm shaft for wax strip roll |
