Lotion paper coating machine


Lotion paper coating machine

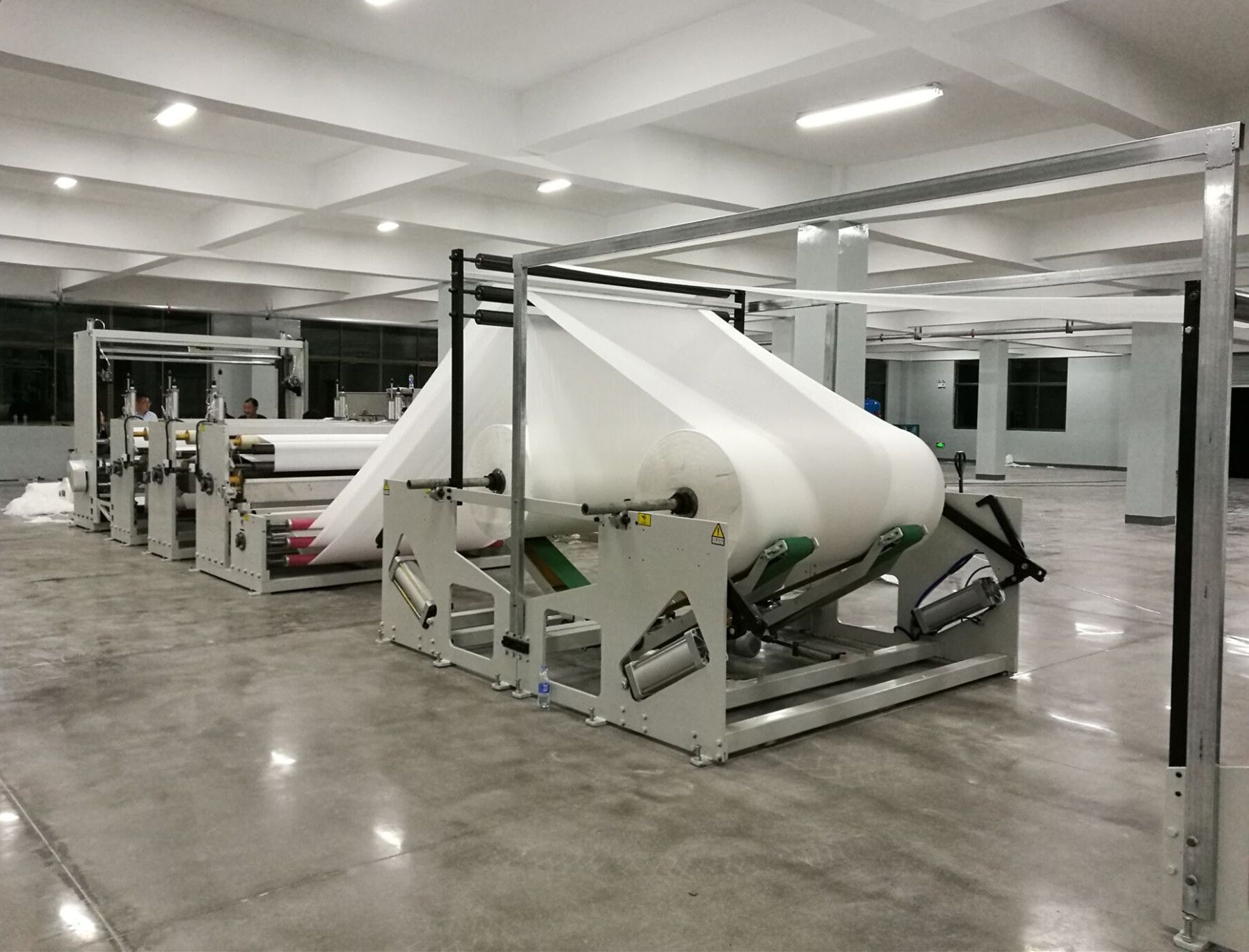

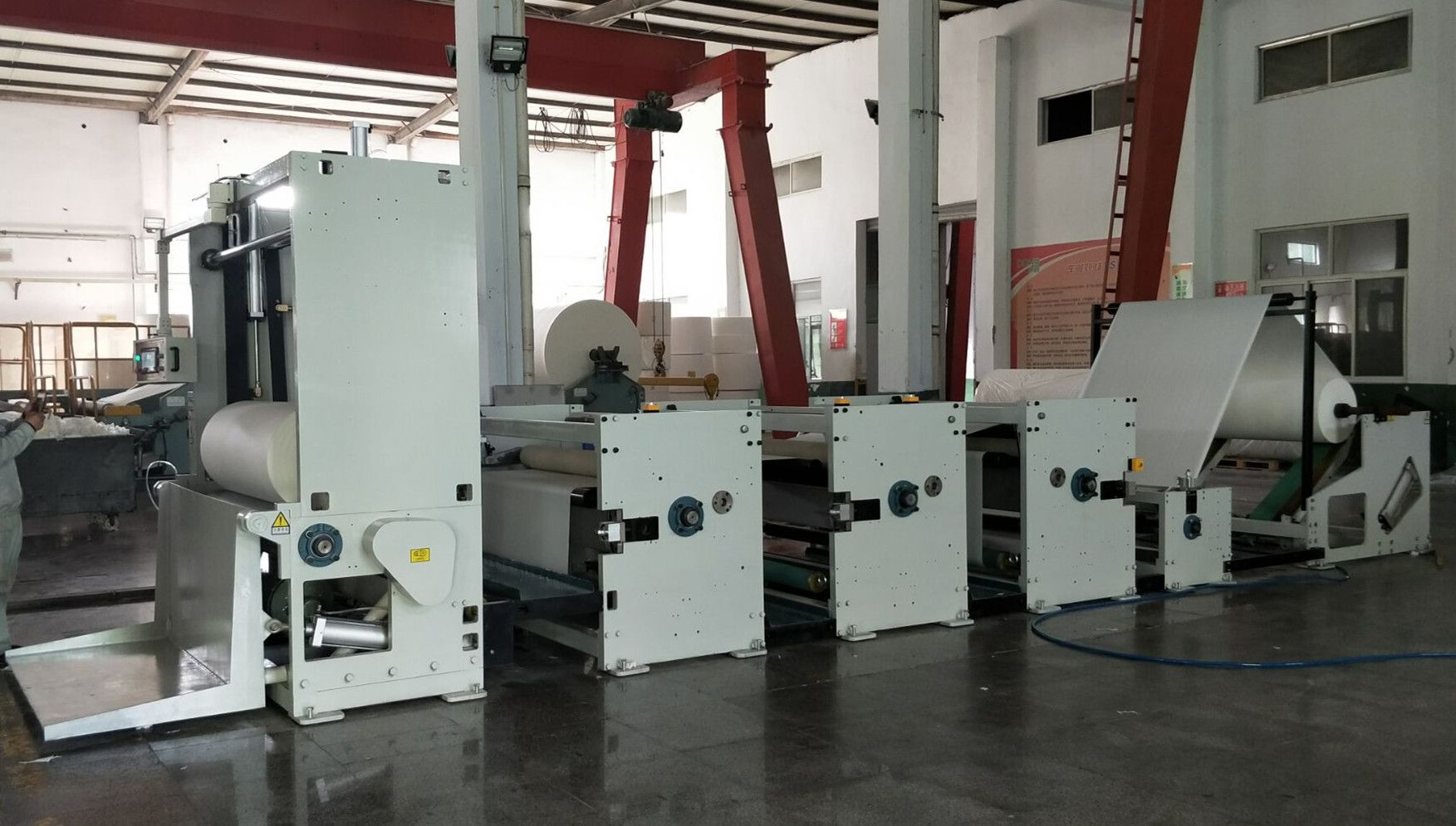

Lotion Paper Coating Machine (Coating, Rewinding and Slitting)

Technical specifications:

1. Raw material
-paper quality 13- 16 gsm (2-4 wet strength wood pulp paper)
-paper diameter 1200 mm
-paper core diameter 76.2 mm
-paper width 400-2800 mm

2. Paper back-stand
- conveying belt
-pneumatic  paper loading
-independent tension controller (manual)
-paper roller direction manual adjustment
-2 sets of paper roller

3. Coating unit
-2 sides coating
- board structure for stability and accuracy
-pneumatic scrapper and pressing roller
-outside lotion tank recycling system
-coating roller can be easily replaced
-auto temperature control for the lotion tank

4. Rewinding unit
-automatic paper discharging
-speed regulation unit
-finished product tightness can be adjusted
-air shaft roller rewinding
-shearing slitting unit

5. Finished products
-paper diameter  Max. 1200 mm
-paper core diameter 76.2 mm
-working speed 80-100 m/min

Our service:

⇒One year guarantee for the whole machine, all life follow-up service.
⇒24 hours technical support by email.
⇒Technicians oversea set-up and workers training.
⇒User- friendly English for operation system.

Packing and delivery

Packaging Details: Film packing.
Delivery Detail: Shipped in 90 days after payment.


Q1: What is the warranty for the machine?
A1:  For the machine, we offer one year warranty. If any quality problems occurred under normal condition during this period, we will take on the costs of maintenance and replacement and other related costs.

Q2: How to operate and maintain the machine?
A2: First, we will provide a professional and detailed manual to you with the machine; Second, we will test and debug the machine into the best condition before shipment for you. Last but not least, we also provide abroad technical training service and online expertise consulting.

Q3: How to get raw material or auxiliary material for the machine?
A3: Our company has over 10-year experience in this industry, we have accumulated various contact information of upstream & downstream firms in fields of raw material, auxiliary material and package for the products. We believe that our professional team can always offer you the best solutions.

Q4: How to find the matching accessories or wearing parts of the machine?
 A4: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with a favorable price if it is out of the warranty.
