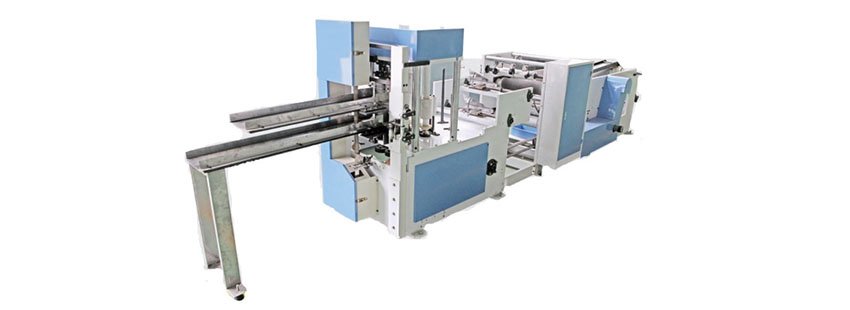

Double channel Napkin paper folding machine

主图
INQUIRY NOW

Double channel Napkin paper folding machine



https://youtu.be/GfPHWsOuIX0

https://youtu.be/doOhVbvnd8A


NT-200-400

ModelSANC-D-330
Folding type1/4 fold
Raw material width330 ±20 mm (200-400 mm available)
Raw material max diameter1100mm
Products size165*165±20mm (can be ordered )
PowerFrequency conversion speed regulator
Transmission systemGear and chains
Embossing unitSteel to wool rollers with heating device(Others to be ordered)
Capacity500-600 sheets/min
CountingElectronic counting
Paper loadingPneumatic loading
Power4.5kw
Power supply380V 50HZ
Dimension4500*1500*1800 mm
Weight2000kg



NT-D

ModelSAN-NT300-D
Folding type1/4 fold
Raw material size300*Ø1200 mm
Open size300*300 mm
Products size150*150±2mm;
PowerFrequency conversion speed regulator
Transmission systemGear and chains
Embossing unitSteel to wool rollers (Embossing pattern is as per buyer’s sample.))
Capacity800-1000 sheets/min
Paper loadingPneumatic loading(air compressor provided by the buyer)
Power4 kw
Power supply380V 50HZ
Color printingNo color printing
Dimension5000*1100*1800 mm
Weight2000kg
Embossing roller size175mm×326mm
Saw blade size3160mm×32mm×0.6mm
Band-saw wheel diameter400 mm
Paper break sensorYes
Tension controlYes
Auto CountingYes



NT SPECIAL FOLDING 1/6 1/8

ModelSAN-NT-380V
Folding type1/8 fold
Raw material width406*1600 mm (2 layers wood pulp paper, 16-20 gsm per layer)
Open size406*406 ±5 mm
Folded size102*203 ±5 mm
UnwindAdjust pneumatic, with belt synchronous transport to ensure stable feeding
EmbossSteel to wool rollers (embossing type to be ordered)
CountAuto count by pneumatic
Power5.5kw
Blower power7.5 kw
Power supply380V 50HZ
Capacity300-400 pcs/min
Other functionAuto stop when paper breaks
