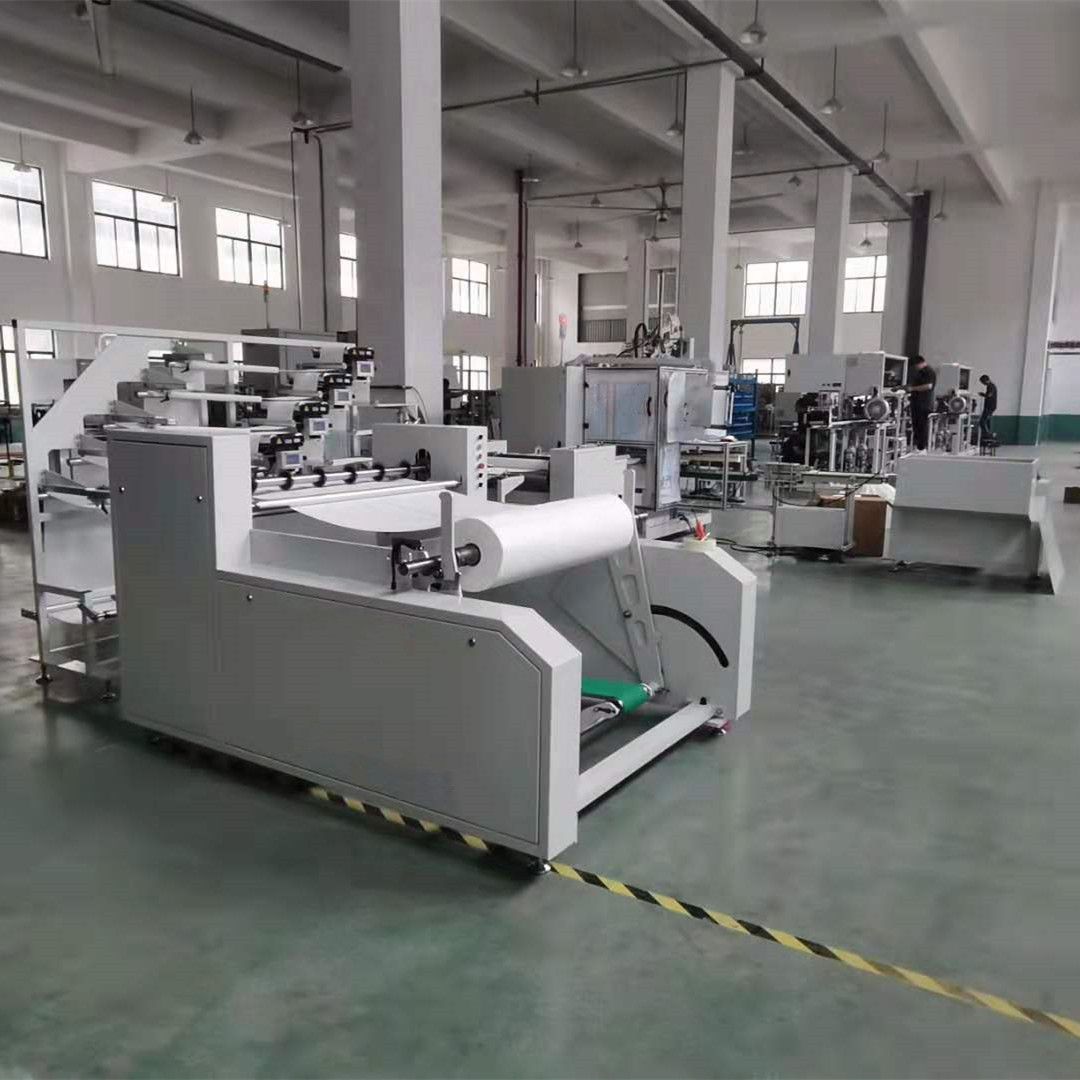

Non-woven disposable roll slitting and rewinding machine
Part 1.Main specifications and technical parameters
| Product size | Diameter max. 260 mm |
| Material width | 200-1000 mm |
| Material quality | 40-100 gsm spunlace non woven |
| Machine control | Servo motor, PLC, touching panel,stepless speed regulation |
| Dimension | 7251*4733*2800 mm |
| Perforation | adjustable |
| Power supply | 380V 50/60 Hz |
| Air supply | 0.6-0.8 Mpa |
| Air pressure | 0.8 m3/min |
| Total power | 16 kw |
| Weight | 3000 kg |
| Running speed | 15-25 bags/min |
Part 2. Major Electric parts
| Touching panel | Mitsubishi |
| Servo motor | Mitsubishi |
| Reducer | BEITTO |
| Low voltage electric parts | Schneider |
| Bearing | NSK |
| Pneumatic parts | SMC |
After-sales services
♥One-year guarantee for the whole machine, all life follow-up service.
♥24 hours technical support by email.
♥Technicians overseas set-up and workers training.
♥User-friendly English for operation system.
Packaging &Delivery
Packaging Details: Stretching film packing
Delivery Detail: Shipped in 60 days after payment
PACKING IS SEAWORTHY AND SAFE.
F&Q
Q1: What is the warranty for the machine?
A1: For the machine, we offer one year warranty. If any quality problems occurred under normal conditions during this period, we will take on the costs of maintenance and replacement and other related costs.
Q2: How to operate and maintain the machine?A2: First, we will provide a professional and detailed manual to you with the machine; Second, we will test and debug the machine into the best condition before shipment for you. Last but not least, we also provide abroad technical training services and online expertise consulting.
Q3: How to get raw material or auxiliary material for the machine?
A3: Our company has over ten-year experience in this industry, we have accumulated various contact information of upstream& downstream firms in the fields of raw material, auxiliary material, and package for the products. We believe that our professional team can always offer you the best solutions.
Q4: How to find the matching accessories or wearing parts of the machine?
A4: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with a favorable price if it is out of the warranty.
