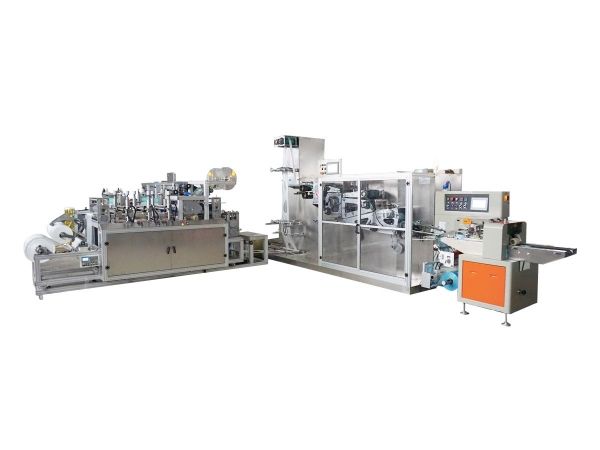

PE/Laminated toilet seat cover production line

PE/PAPER LAMINATED Toilet seat cover production line

Video link： https://youtu.be/XvwP8VIJ6G8

Product open size 440×380±5mm

Product folded size 220×190±5mm

Raw material: PE toilet seat cover; Paper&plastic toilet seat cover

Raw material size 380×Φ1000mm

Pneumatic paper loading  air compressor provided by the buyer

Embossing unit 1 set steel to wool or rubber rollers

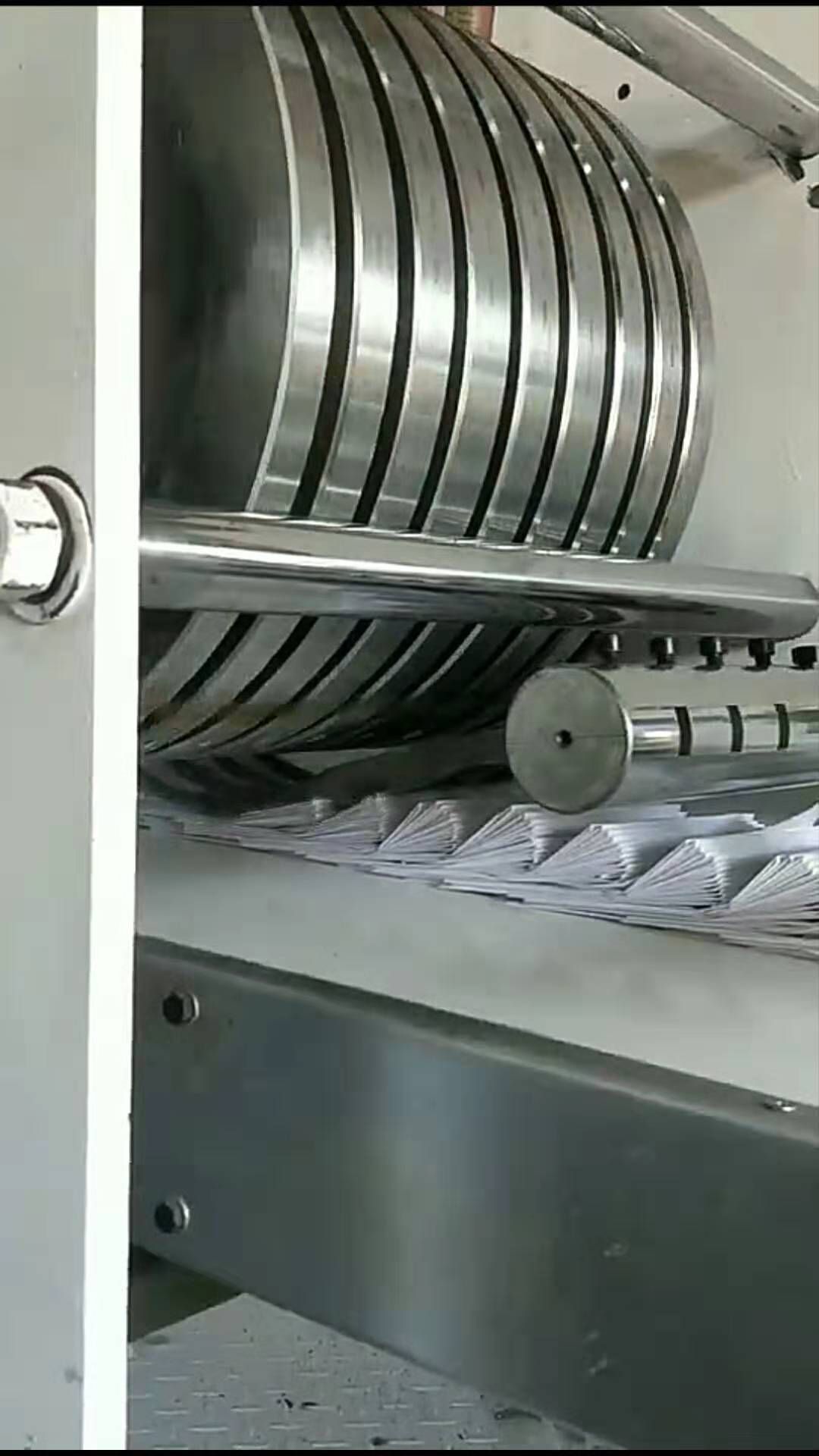

Folding type  1/16 fold； 1/32 fold

Die-cutting device customized to a given sample or size

Longitude folding inserting knife folding (offset folding can be optional)

Flat belt transmission

Capacity 80-100 pcs/min

Motor  380 V 50 Hz 5.5 kW

Frequency conversion and speed regulation
