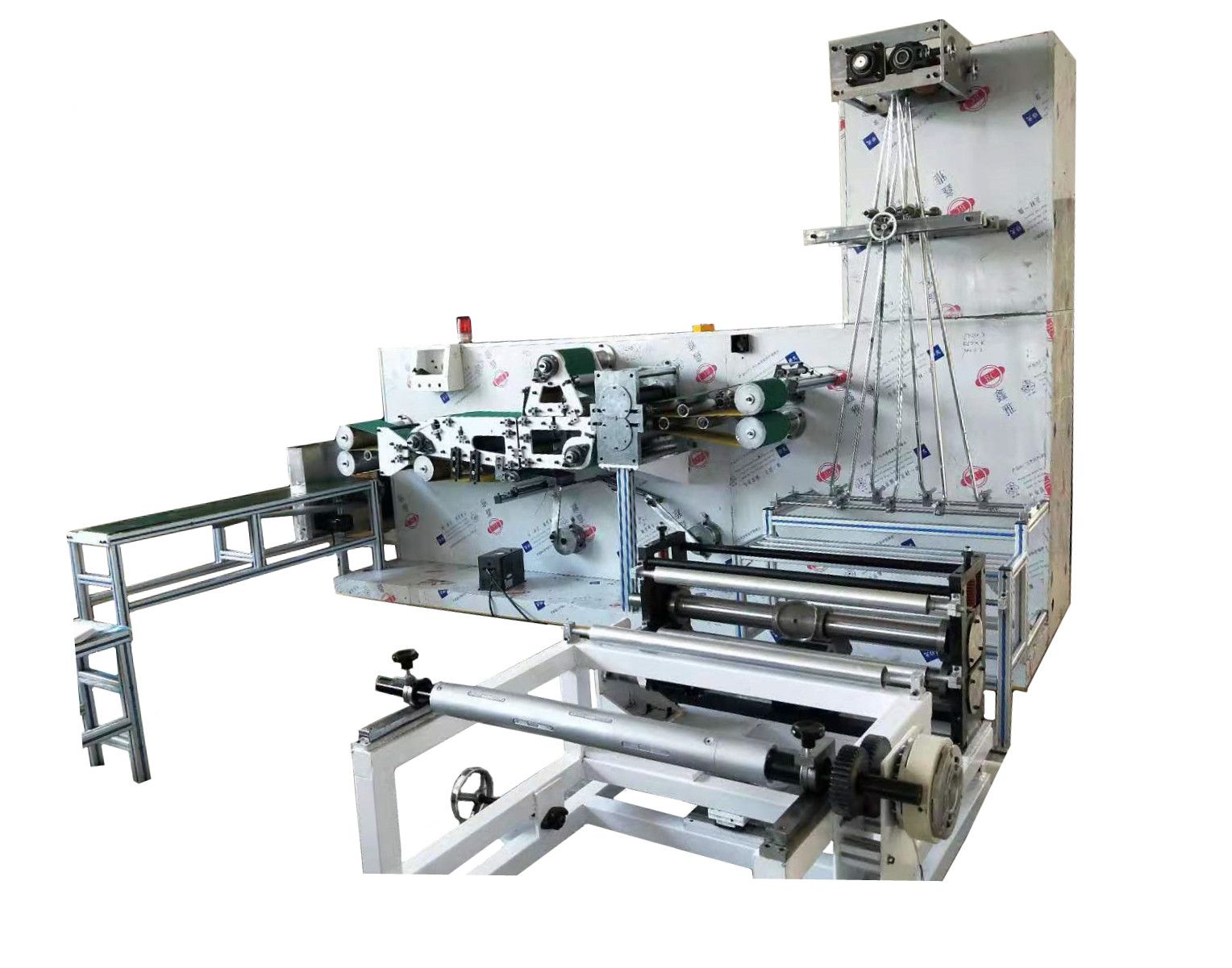

Function

Fold medical use non-woven material and disposable bed sheets.

Folding method

Longitudinal fold + horizontal fold 2 times

Longitudinal fold + horizontal fold 3 times

Finished product output method

Conveying belt

Product size

【According to clients' requirements】

700*800 mm

700*700 mm

600*600 mm

500*500 mm

400*400 mm

1400*2000 mm

800*2000 mm

700*2000 mm

800*1600 mm

800*1400 mm

700*1600 mm

700*1400 mm

Cutting length

350-800mm

900-2500 mm

Length adjusting

Touching panel

Length

Adjustable

Raw material

20-60gms non woven

Material width

≦800mm

≦1600mm

Paper core diameter

76.2 mm

Material diameter

Max 1100 mm

Working speed

80-100 m/min

Power supply

380v，50hz 3 phase 4 wire

Total power

About 8 kw

Machine weight

2300kg

Machine dimension

4*1.1*2.6 m

5.3*1.2*2.8 m

Compressed air

0.6-0.8 Mpa, 1.2m^3/min (provided by the buyer)
